argus view browser — local read-only web UI

After a scan produces argus-results.json, there are three ways to look at it today: open the JSON directly (for engineers comfortable with the shape), run argus view terminal (for engineers who live in the terminal), or argus view browser — a tiny web app bundled with the SDK that serves the same findings to anyone with a browser.

Aimed at owners, managers, and executives who want at-a-glance insight into their product's security posture without digging through CI logs or learning a TUI.

Install

pip install 'argus-security[browser]'

Pulls in FastAPI, uvicorn, Jinja2, and python-multipart (~10 MB total). Without the extra, running argus view browser prints a friendly install hint and exits cleanly — the extra is never required for argus scan or any other subcommand.

Launch

argus view browser                          # picker rooted at CWD
argus view browser /path/to/results/        # load that scan directly
argus view browser /path/to/scans-parent/   # picker rooted there
argus view browser --port 9090              # non-default port
argus view browser --no-open                # skip auto-opening the browser (default opens it on TTY)

Localhost only. The server always binds to 127.0.0.1 — there is no --bind flag by design. Single-user, single-machine is the product shape; it's what makes "no auth, no sessions, no CSRF handling" the right scope. For multi-user enterprise deployments, see the separate argus-portal track.

Views

Persistent scan context. Every primary view (dashboard, findings, log) carries a slim sticky context bar under the header — project · source commit · when the scan ran · finding count — so you always know which scan you're looking at as you scroll and move between views. It's built on theme tokens, so it flips cleanly between light and dark, and degrades gracefully without JavaScript (the timestamp just stays in epoch form). On the picker and diff views, where there's no single scan in scope, it's omitted.

/ — Executive summary dashboard

Opens here by default.

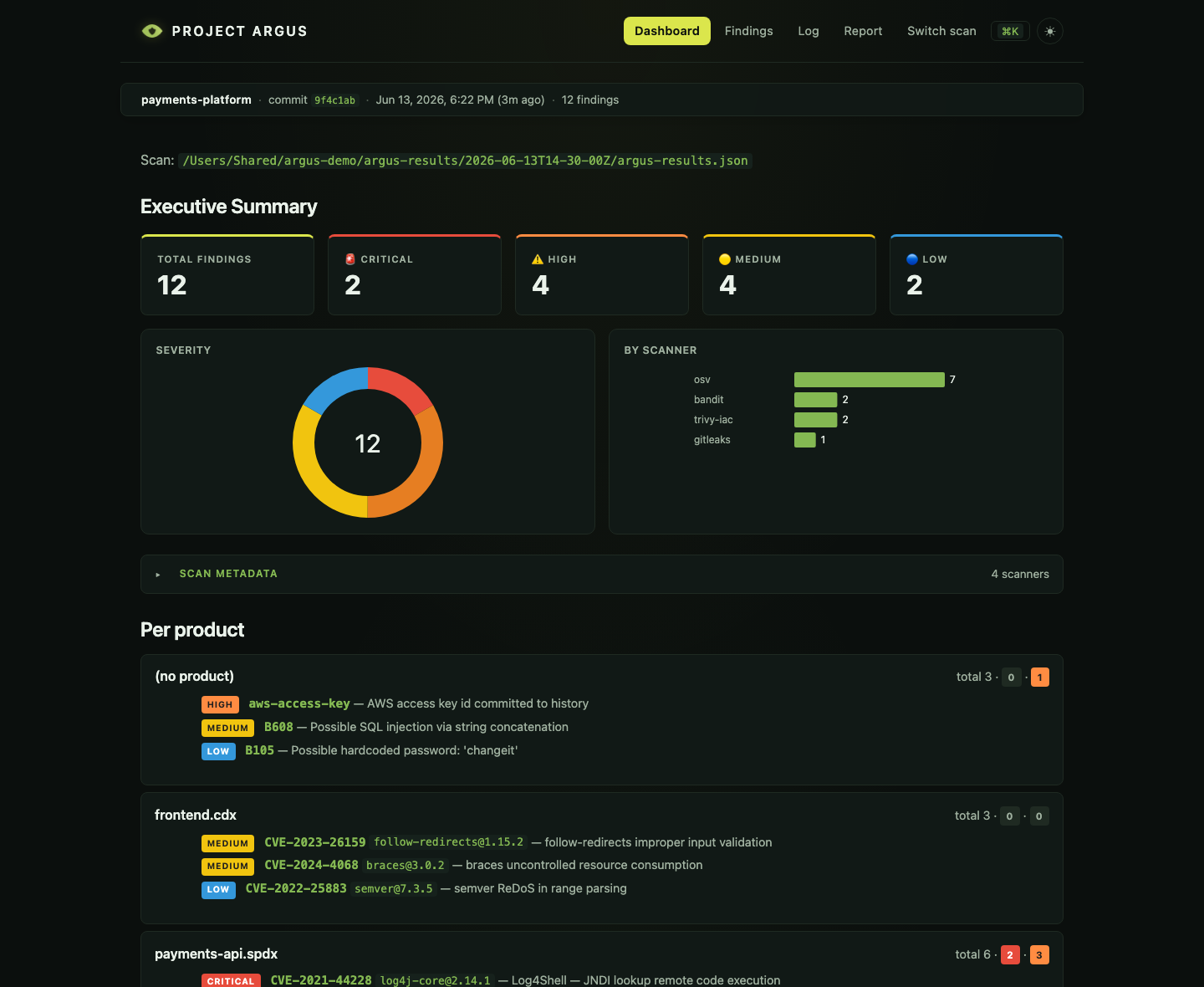

Argus browser dashboard — a sticky scan-context bar (project, commit, scan time, finding count), then severity-accented stat cards, a severity donut, a findings-over-time trend, and a by-scanner bar chart

Shows:

  • Total findings + per-severity breakdown (cards at the top, each a deep-link into the matching /findings filter)
  • Visual analytics — a severity donut, a findings-over-time trend line (from the run history), and a by-scanner bar chart. Rendered as inline SVG with no chart-library dependency; the line draws on and the cards count up on load (motion is gated on prefers-reduced-motion)
  • Scan quality warnings — SPDX-2.1 SBOMs Trivy can't read, low-purl coverage, Grype "couldn't identify scan subject" — surfaced loudly so empty scans aren't misread as clean
  • Per product — every SBOM source with total + critical + high counts and the top-3 findings (severity, ID, package, title)
  • Per scanner — contribution counts (useful for spotting when one scanner did 90% of the work, which often signals an input format issue)

Motion & polish. The viewer uses a dependency-free motion layer — the CSS View Transitions API cross-fades page navigations, cards/charts rise in on load, and the trend line draws on. All of it is wrapped in prefers-reduced-motion, so the UI degrades to a fully static, accessible page (the screenshots above are captured in exactly that reduced-motion state).

Light & dark themes. Everything — charts, cards, the command palette — is built on theme tokens (the chart SVGs reference CSS custom properties, not hardcoded colours), so it flips cleanly with the theme toggle / your OS prefers-color-scheme:

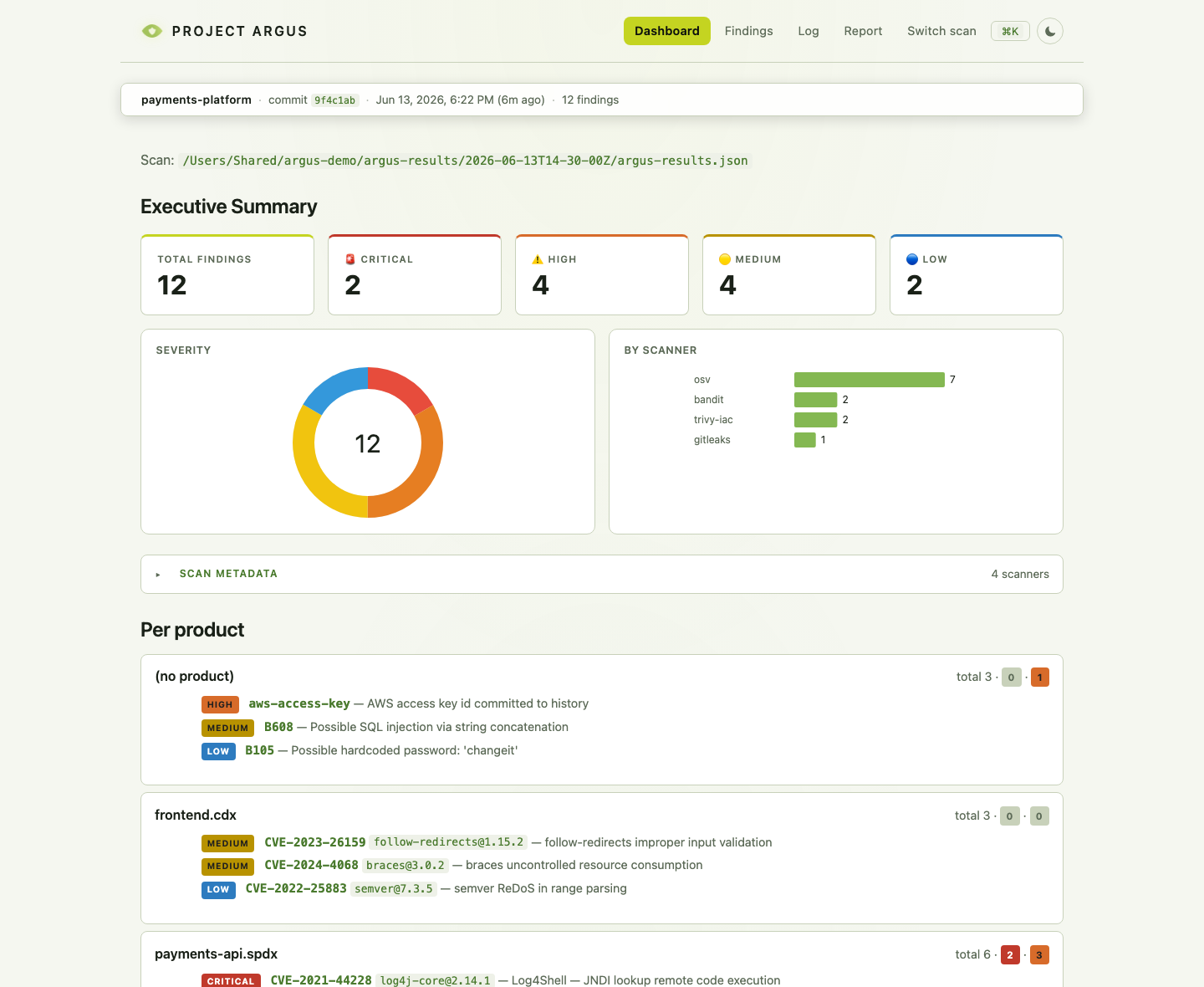

Argus browser dashboard in light theme — same charts and cards, light surfaces with dark text

Command palette (Cmd/Ctrl + K)

Browser parity with the TUI's Ctrl+P: a fuzzy launcher over the page's own navigation — jump to any view, severity filter, product/scanner, or recent run without the mouse. Press Cmd/Ctrl+K (or click the ⌘K chip in the header), type to filter, ↑↓ + Enter to go.

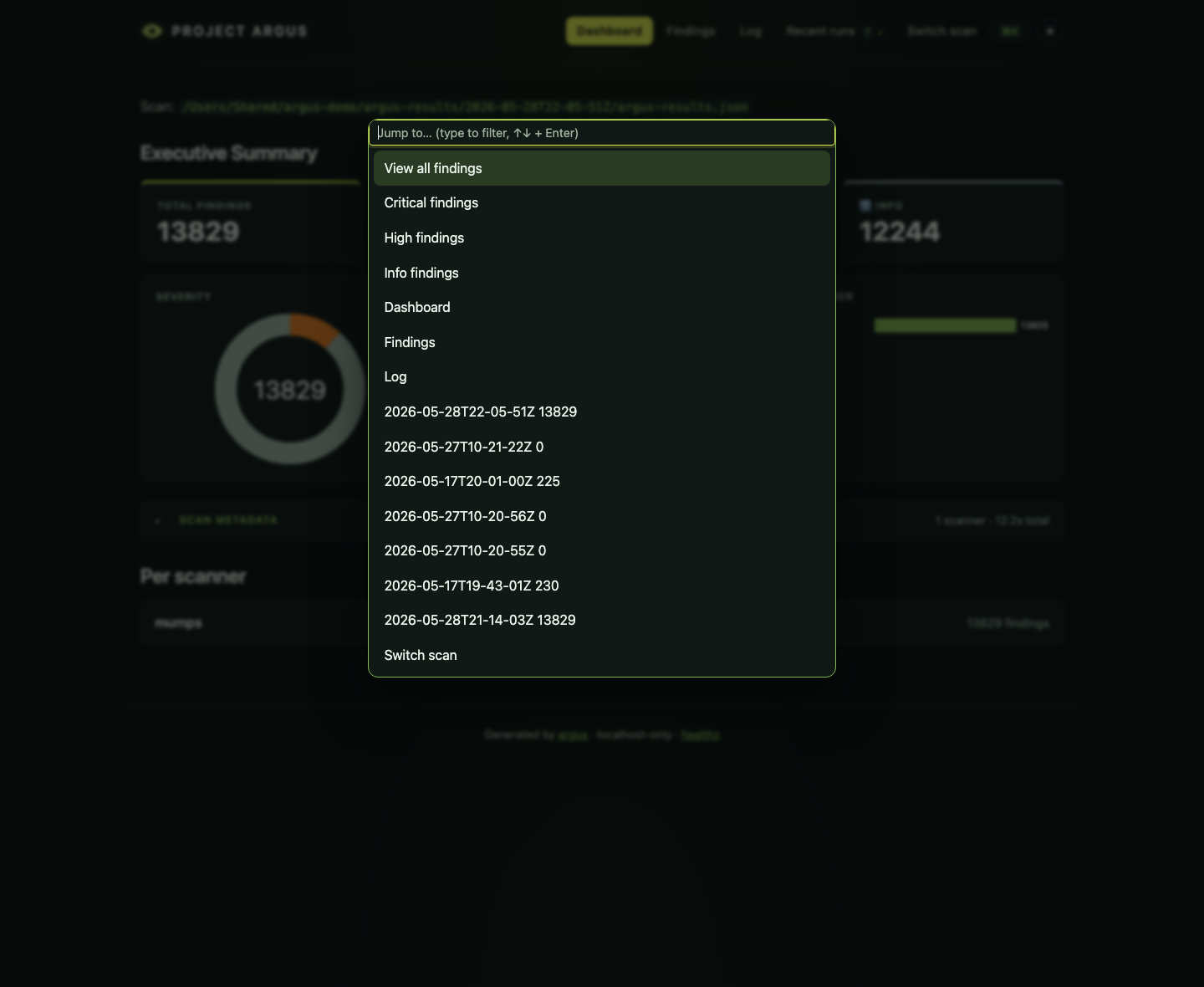

Argus browser command palette — fuzzy launcher listing views, severity filters, and recent runs over a dimmed dashboard

Vanilla JS, CSP-safe (it builds its overlay in the DOM and indexes existing links — no inline script, no data blob), and a no-op when JavaScript is off.

/findings — Filterable table

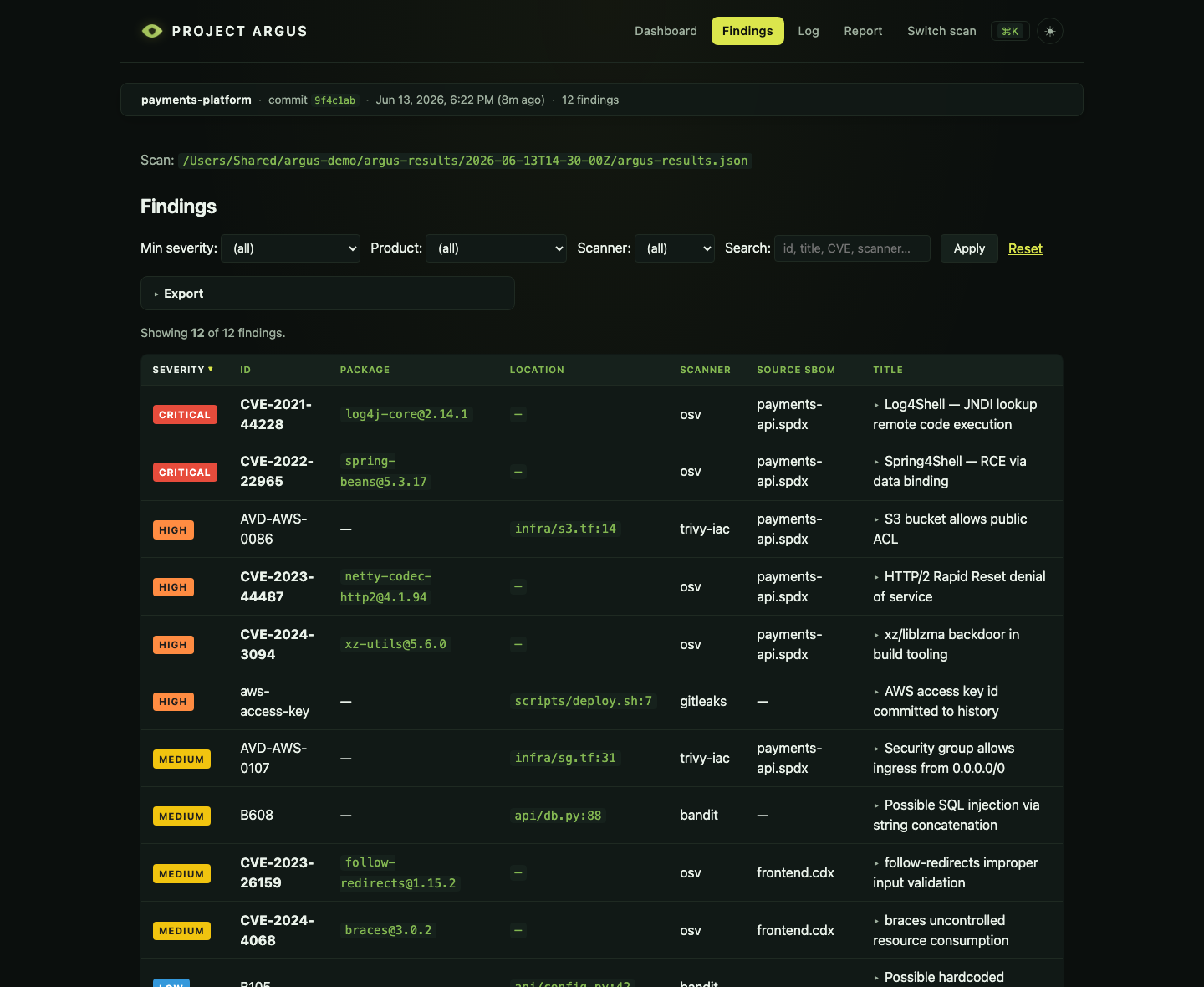

Argus browser findings table — severity-badged rows with filter bar, count, and export

The spreadsheet view. Dropdown filters for severity, product, and scanner; a search box that matches id, title, location, CVE, and scanner name. Filters combine with AND semantics — the exact same logic the TUI uses.

URLs are bookmarkable:

http://localhost:8080/findings?scan=/path/to/results&min_severity=high&product=BVMS.spdx

JS-enhanced sessions get live filter updates without a page reload; non-JS clients see the same content via a plain form submit (Apply button is the fallback).

Risk column (EPSS + CISA KEV) — opt-in

Set ARGUS_VIEW_ENRICH=1 (or pass enrich=True to create_app) to add a Risk column: for each CVE, the live EPSS exploit-probability and a 🔥KEV flag (CISA Known-Exploited), blended into a 0–100 risk score that re-ranks by real-world urgency — an actively-exploited CVE rises above a nominally-higher-severity one that isn't.

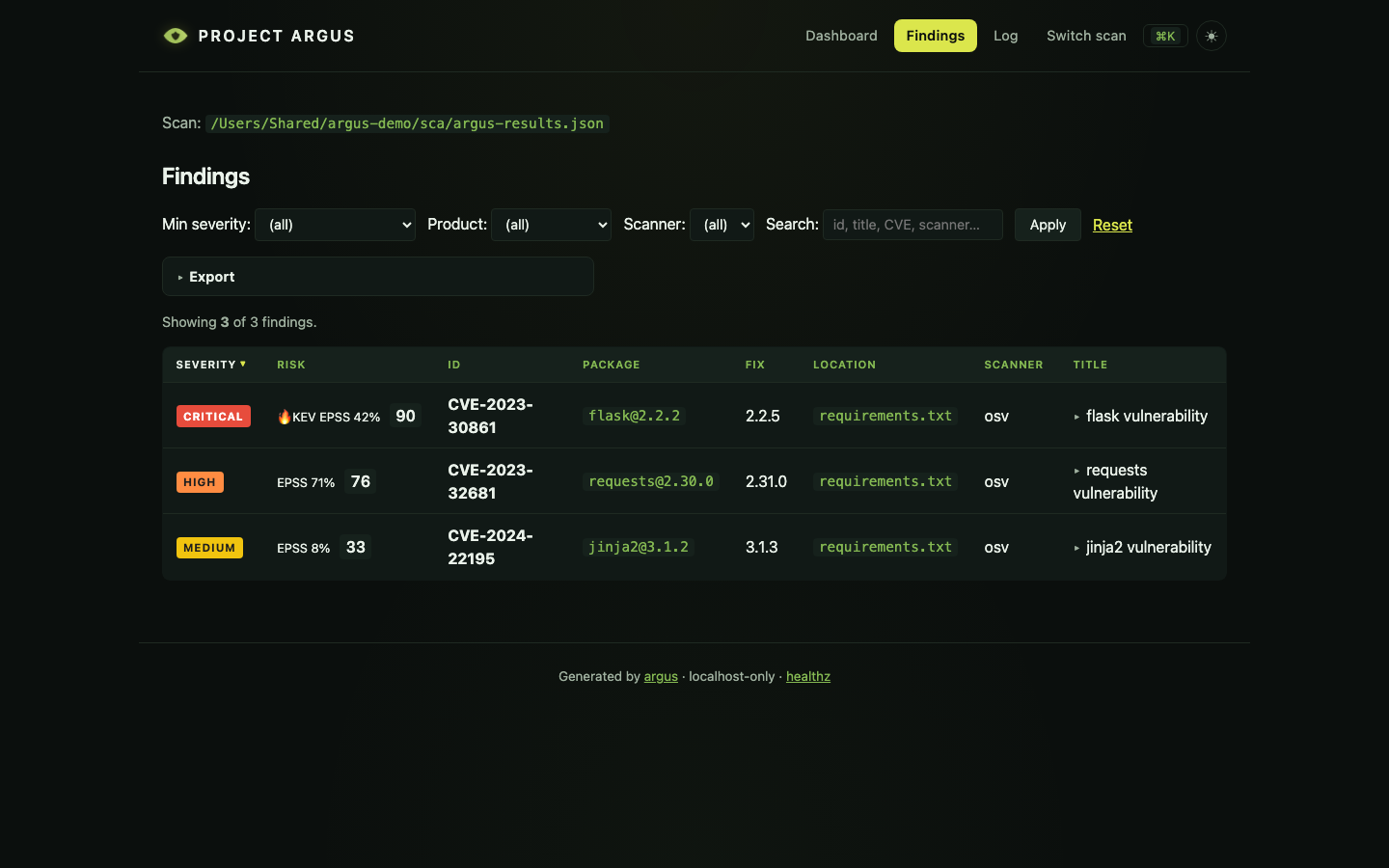

Argus browser findings with the opt-in Risk column — EPSS % + 🔥KEV badge + a 0–100 score; the KEV-flagged CRITICAL scores highest

Off by default — the read-only / no-egress boundary holds. Enrichment only reaches the EPSS/KEV endpoints when you opt in; results cache on disk; only public CVE ids leave the host. Reachability ("is the package imported in source?") is deliberately not offered here — it scans source files, which belongs in the trusted-shell terminal viewer (argus view terminal, the i action), not the read-only browser.

/report — Formal vulnerability report (Argus Enterprise add-on)

The authoritative artifact. Where the dashboard is collapsible, filterable, and built for triage, the report is a single linear document built to be printed, archived, and handed to an auditor — the kind of evidence a compliance officer or a government body can act on. What makes it authoritative is the provenance & attestation block: the exact Argus version, the source commit SHA the scan actually saw, each scanner container image + sha256 digest + its cosign/digest verification status, and whether a signed in-toto attestation accompanies the scan — so every finding ties back to a specific, verifiable scan rather than a screenshot. Below it: a PASS/FAIL verdict, severity counts + charts, per-product / per-scanner breakdowns, and the full findings inventory grouped by severity.

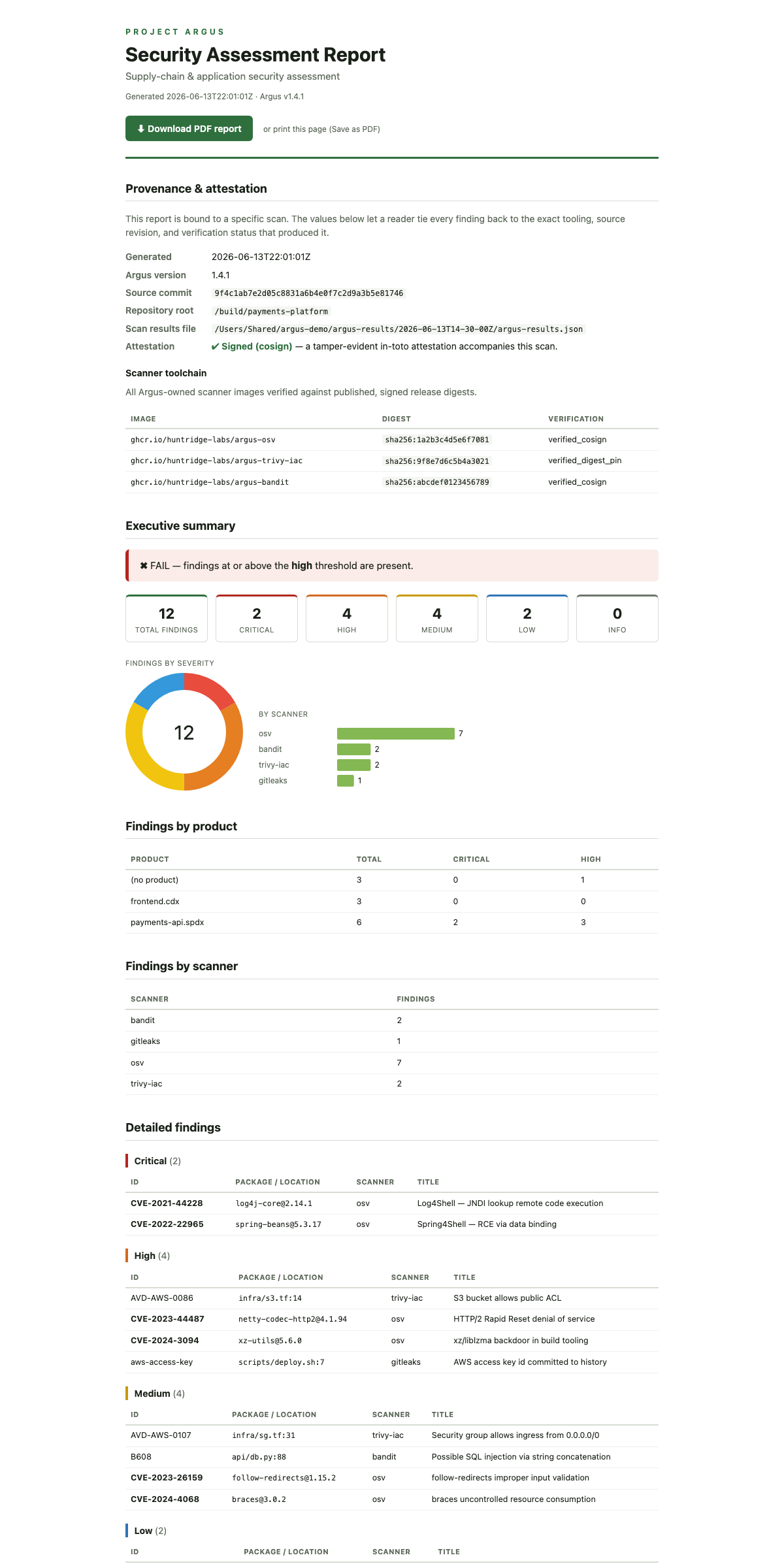

Argus formal security report — cover, provenance & attestation block with commit SHA and cosign-verified scanner image digests, a PASS/FAIL verdict, severity counts and charts, and the full findings inventory grouped by severity

Report generation (the HTML report and the one-click, server-side PDF) is an Argus Enterprise capability — the open-source viewer ships no report. That is deliberate: a report served as HTML could be saved to PDF from the browser, which would give away the paid artifact. The dashboard and findings views stay free; the authoritative, archivable report is the paid deliverable. With the add-on installed, the /report and /report.pdf routes light up on this same viewer through the argus.viewers.browser_plugins seam. Learn more or request access: https://www.huntridgelabs.com/.

/picker — Switch scan

A one-level file browser. Click into subdirectories; any directory containing an argus-results.json gets a "Load scan" button with a finding-count peek. Dotfiles and common build directories (node_modules, .git, .venv, etc.) are hidden by default; ?show_hidden=1 reveals them.

Deliberately non-recursive — users drive the navigation. That keeps the picker fast (no filesystem walk on every request) and avoids decisions about depth limits and gitignore semantics.

/healthz

Liveness check. Returns {"status": "ok", "root": "<picker-root>"}. Handy for scripts that need to know when the server has started up.

Security posture

  • CSP header on every response: default-src 'self'; style-src 'self' 'unsafe-inline'; script-src 'self'. Blocks inline scripts and any cross-origin resources.
  • X-Frame-Options: DENY — the dashboard can't be framed into a parent page (harmless in the localhost-only context, defensive against future non-localhost deployments).
  • Jinja2 autoescape — scanner-supplied text (finding titles, descriptions) is HTML-escaped before reaching the page. Combined with the CSP, an attacker-controlled CVE description can't execute script in the browser.
  • No auth, no cookies, no sessions — localhost-only means single user; there's nothing for a session to represent.
  • No mutations — every route is GET. Nothing on the server to defend against CSRF.
  • Input sanitization — filter values passed via URL are validated; bogus min_severity=?? falls back to "no filter" instead of crashing the route.

Not in v1 (tracked as future roadmap items)

  • Live reload when argus-results.json changes on disk. Right now: browser refresh to re-read the file.
  • Scan-over-scan diff — compare today's scan to last week's.
  • JSON API endpoints — external tools (Slack bots, custom dashboards) can read argus-results.json directly today; we'll add /api/... if a real use case shows up.
  • Recursive picker walks — one directory level at a time is the current design. If users ask for "find all scans under this tree," that's a separate UX decision (performance, gitignore semantics, skip-rules).

Architecture relationship to argus view terminal and argus-portal

Three UIs look at the same data; each has its own scope:

Tool Scope Audience
argus view terminal (TUI) Single scan, read-only Engineer triaging in a terminal
argus view browser (this) Single scan, read-only, local web Owner / manager / exec on the same machine
argus-portal Multi-scan, multi-user, persistent DB, OAuth, FedRAMP Enterprise compliance organization

argus view terminal and argus view browser share a module — argus.core.findings_view — that owns the filter / sort / summary logic. ViewState semantics, compute_summary output, and severity ordering are identical across the TUI and the web view. A filter that produces 17 results in the TUI produces the same 17 in the browser.

argus-portal is a separate project on a separate track. It doesn't share code today; when it matures, we may factor a third consumer onto findings_view so all three agree on what "high severity" means and which findings match which filter.

Troubleshooting

argus: error: argument command: invalid choice: 'serve' — argus serve was renamed. The browser UI is now argus view browser (or argus view --interface=browser). Update your command.

"The browser interface needs the 'browser' extra" — you installed argus-security but not the [browser] extra. Retry with pip install 'argus-security[browser]'.

Port 8080 already in use — pass --port 9090 (or any free port).

Browser didn't auto-open — we use the stdlib webbrowser module which is generally reliable but can fail silently in headless or SSH-remoted environments. The URL is printed to stdout — open it manually.

Page renders "No scan loaded" — the directory you pointed argus view browser at doesn't contain an argus-results.json. Use /picker to navigate to one, or pass ?scan=/abs/path on /.
